Spherical Model Vise with Angle Adjustment and Modular Clamps DSPIAE AT-SV

General Characteristics:

High precision model vise designed for stable holding of details and figures during painting, sculpting, sanding, and other precision work.

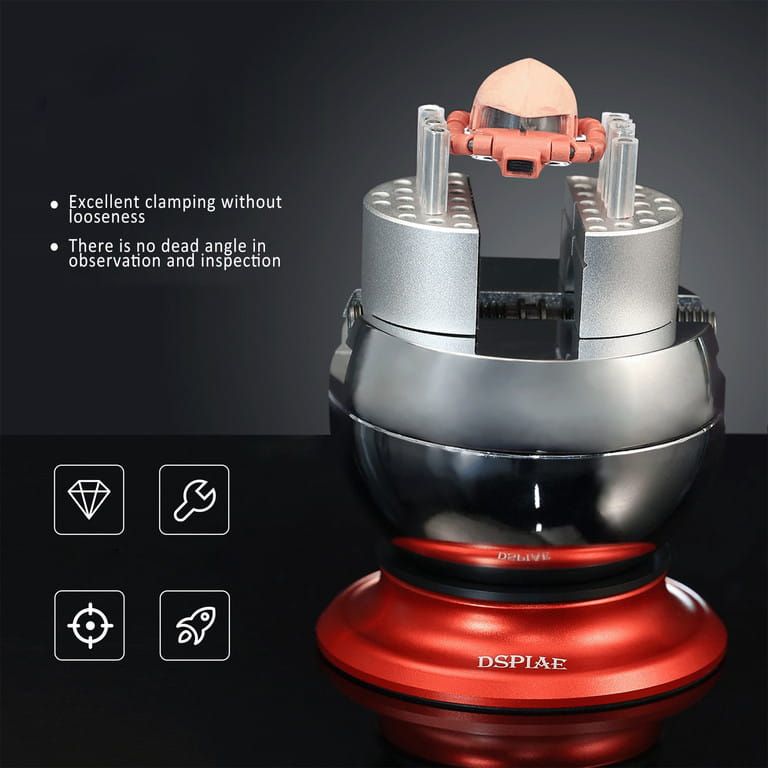

The design allows observation and processing of the clamped element at any angle (no dead angle).

Spherical Design and Functionality:

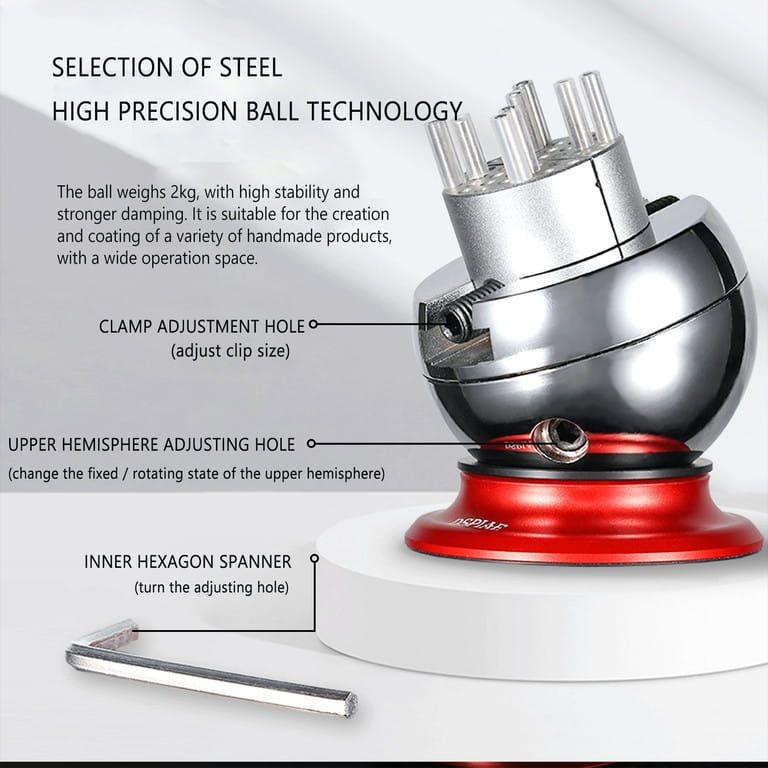

Ball: The central part of the vise made of steel weighing about 2 kg, ensuring high stability and vibration damping.

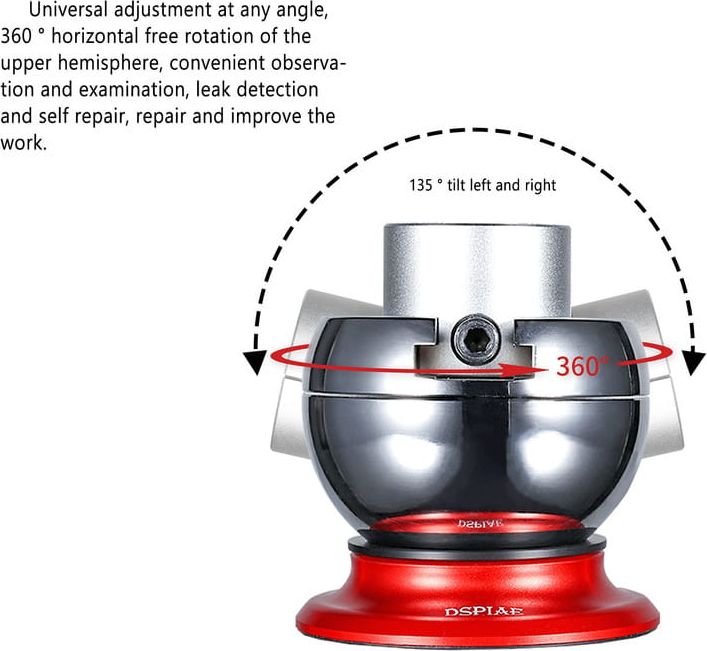

Range of Motion:
- 360° rotation in the horizontal plane.
- Lateral tilt up to 135° (left and right).
Base: Stable, anodized, in red color.

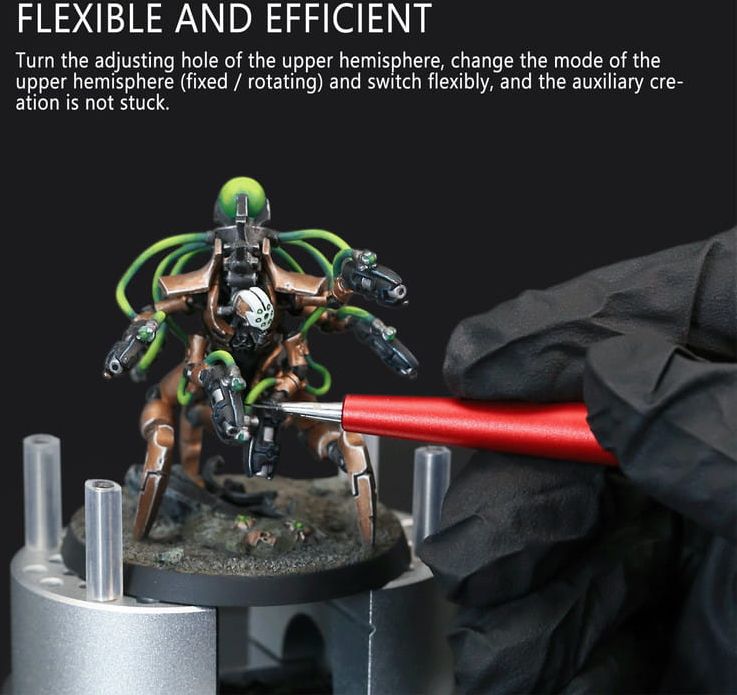

Operating Modes: Ability to switch the upper hemisphere's operating mode to fixed or rotating using a special adjustment hole.

Clamping Mechanism (Jaws):

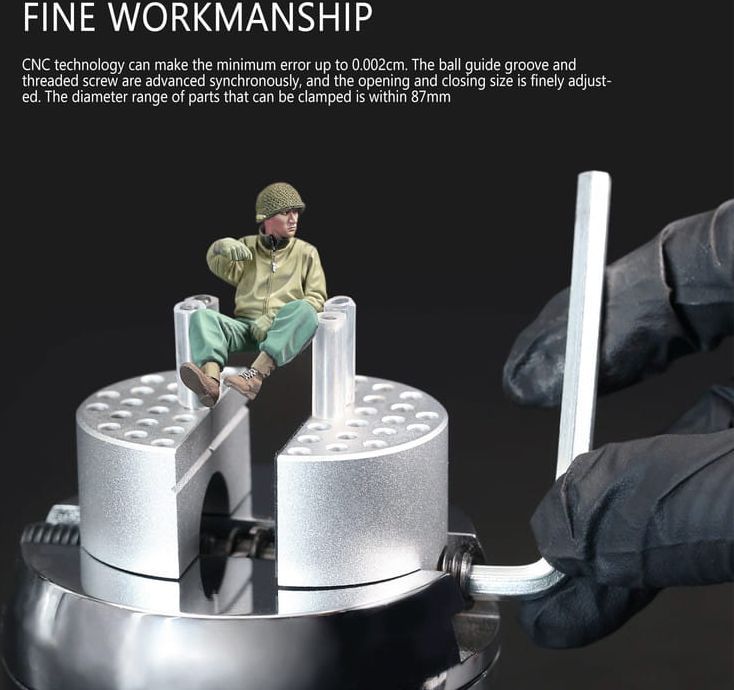

Precision: Made using CNC technology, with a minimal error of up to 0.002 cm.
Materials: The clamps are made of metal (the upper part consists of two half-cylindrical jaws).
Clamping Size: The range of diameters of clamped parts is within 87 mm.
Holes and Pins: The jaws have numerous holes for inserting provided transparent clamping rods.
Clamping:

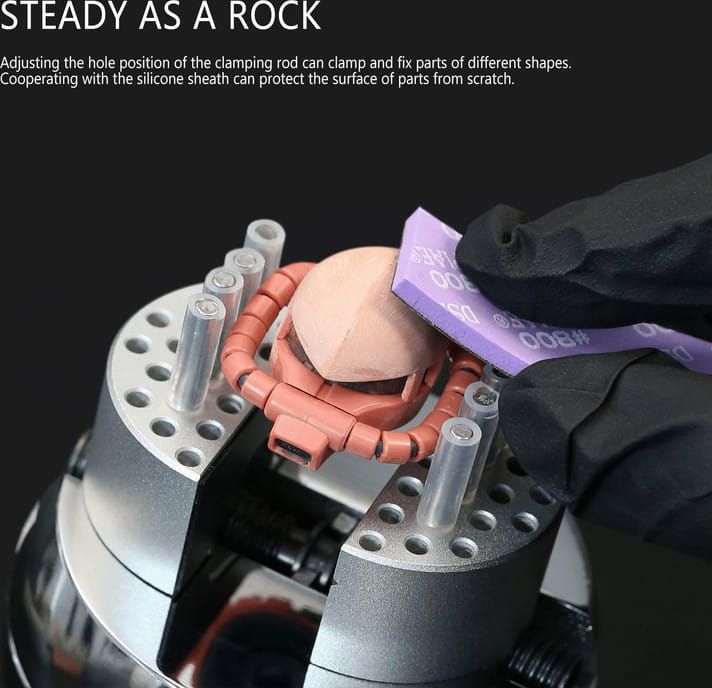

- Ability to clamp elements using adjustable pins, often with the use of silicone sheaths to protect surfaces from scratches.

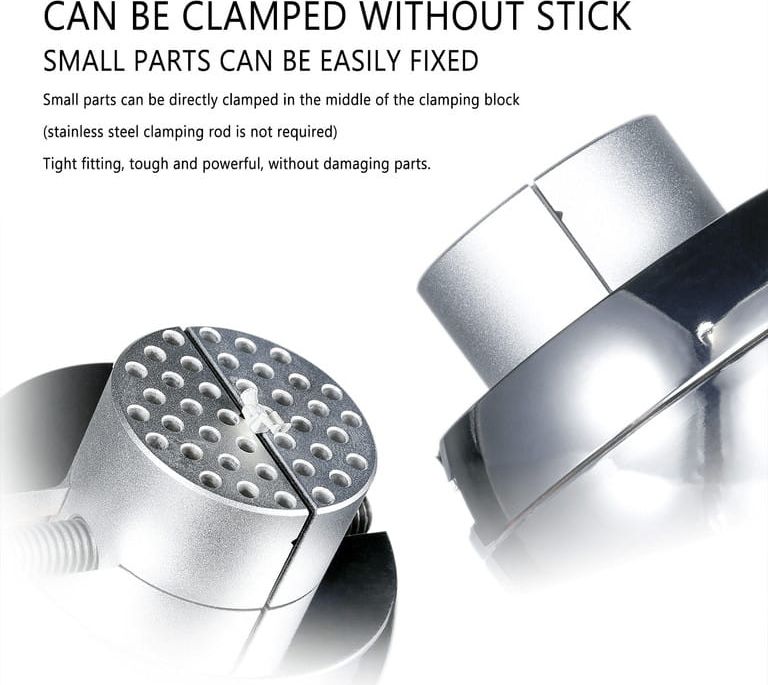

- Small parts can be clamped directly in the central clamping slot.

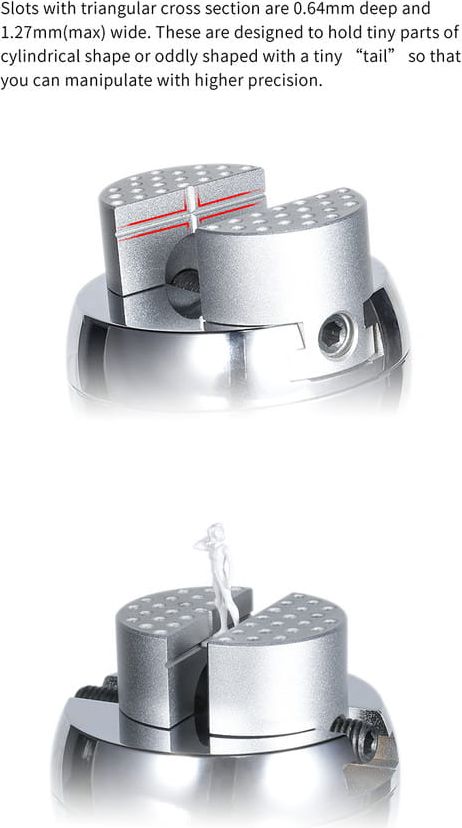

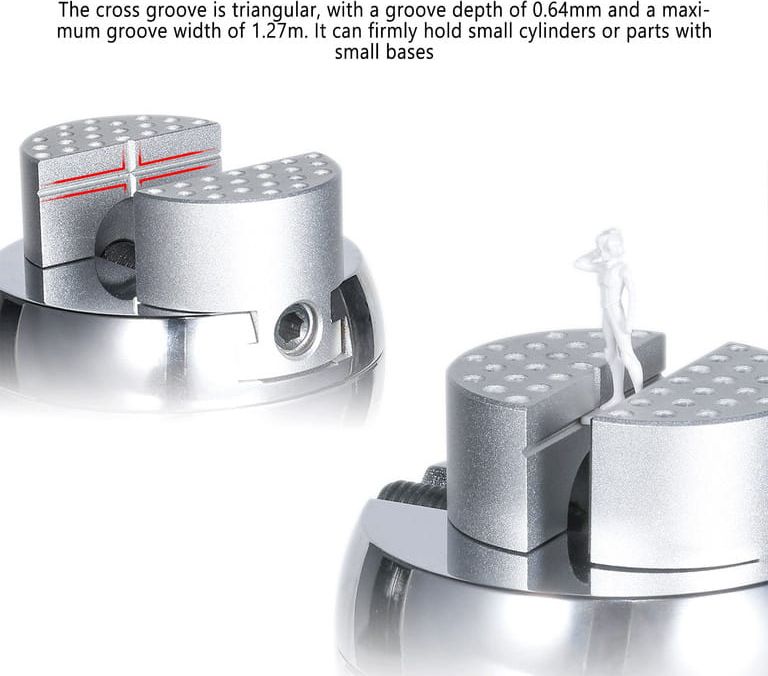

- The slots have a cross groove with a triangular profile, a depth of 0.64 mm, and a maximum width of 1.27 mm, for secure holding of small cylindrical elements.
